Overview

Component Business Unit

Precision Components Business Unit is specialized in the manufacturing of optical product components. We deliver full-cycle services from prototyping to mass production based on client drawings and other technical specifications. This BU includes: Metal Machining Department, Metal Surface Treatment Department, Spherical Lens Department, and Aspheric Lens Department.

Business Scope

Departments

Metal Machining & Surface Treatment Department

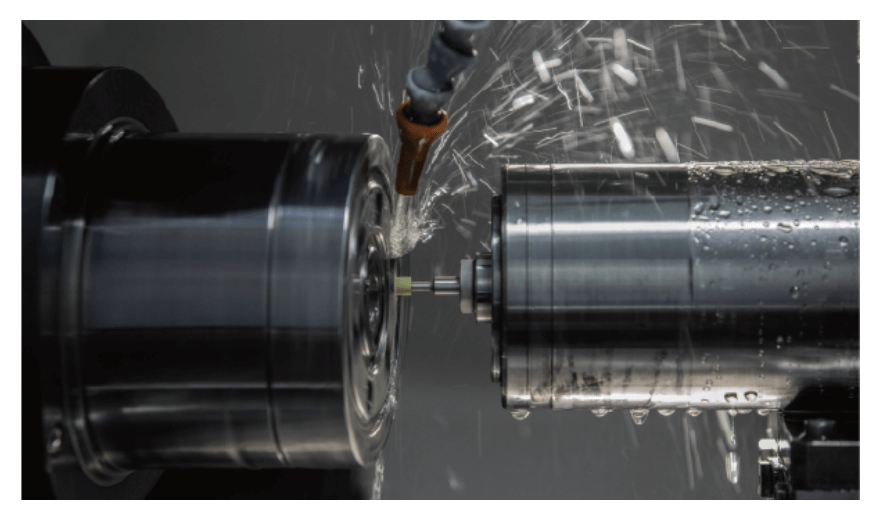

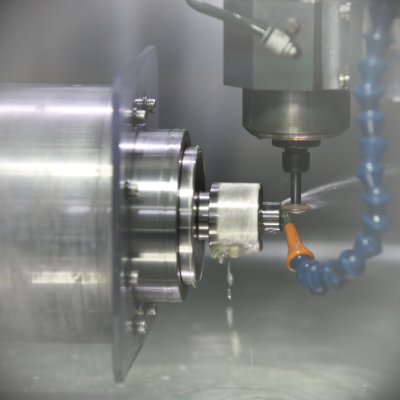

Metal Machining & Surface Treatment Department has expertise in turning, milling, and turn-milling composite processing of metal parts with integrated in-house surface treatment post-processing for closed-loop quality control.

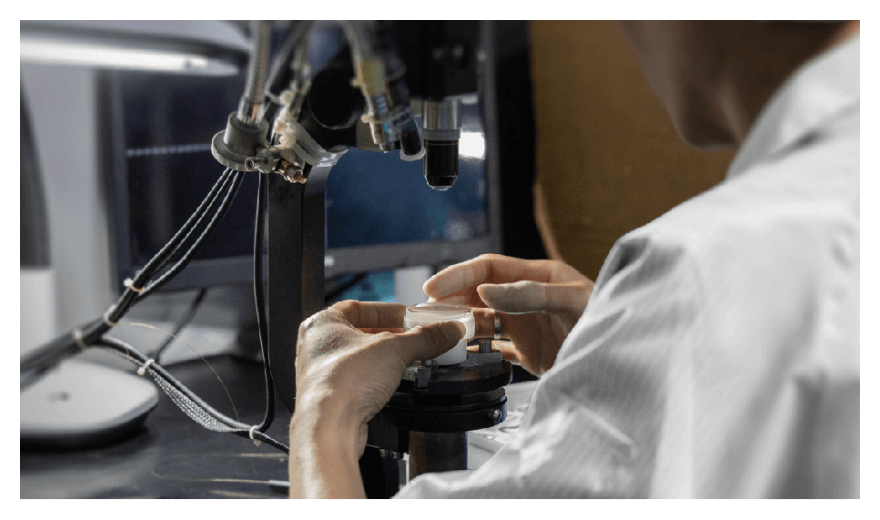

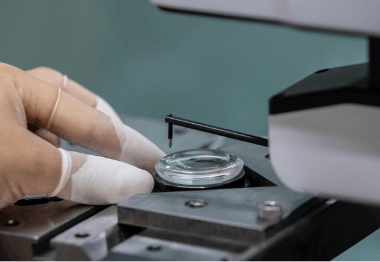

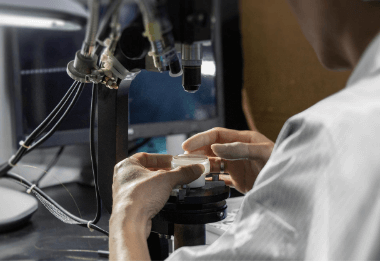

Spheric Lens Department

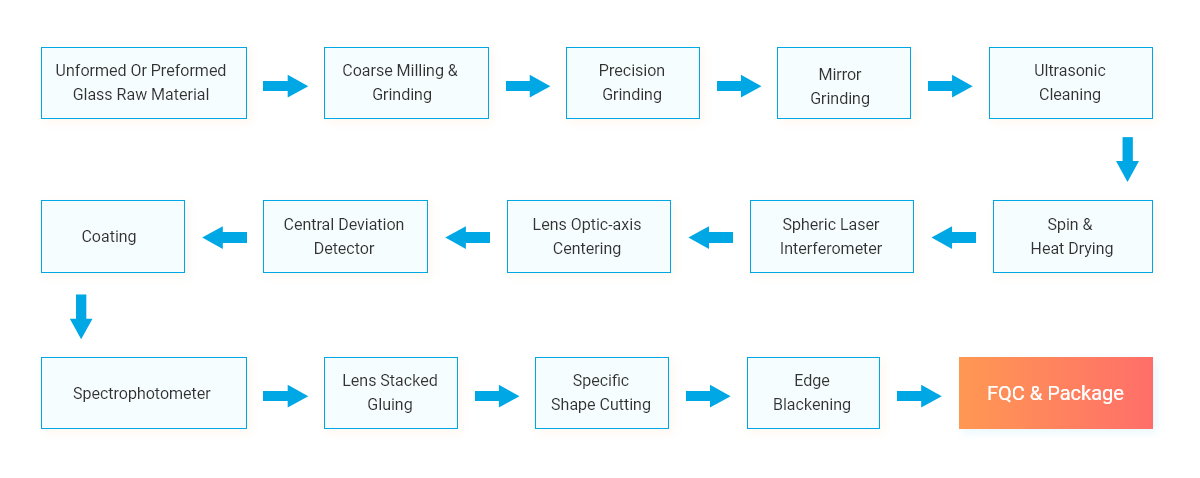

Spheric Lens Department is focused on spherical lens processing and includes almost full in-house capabilities like milling, grinding, centering, coating, cleaning, and lens optical measurement to provide one-stop solutions for spherical lens manufacturing.

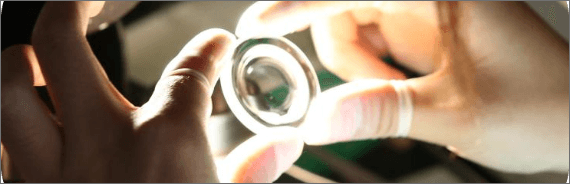

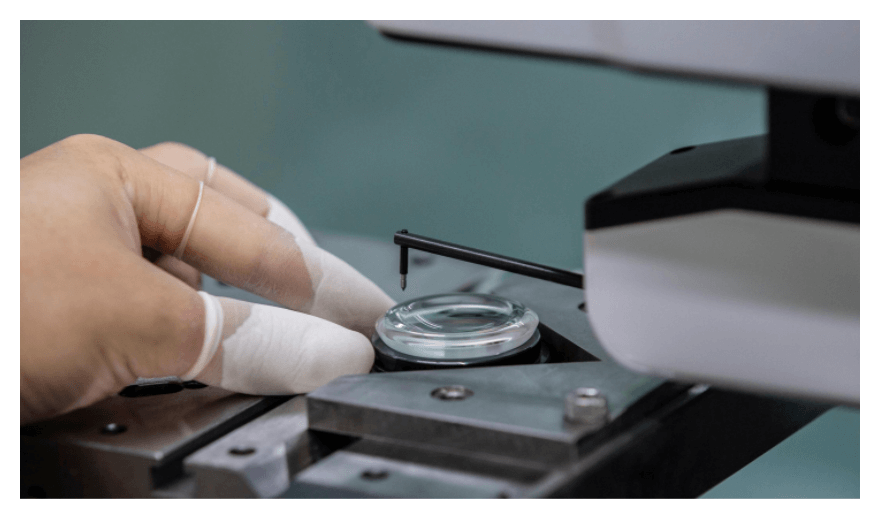

Aspheric Lens Department

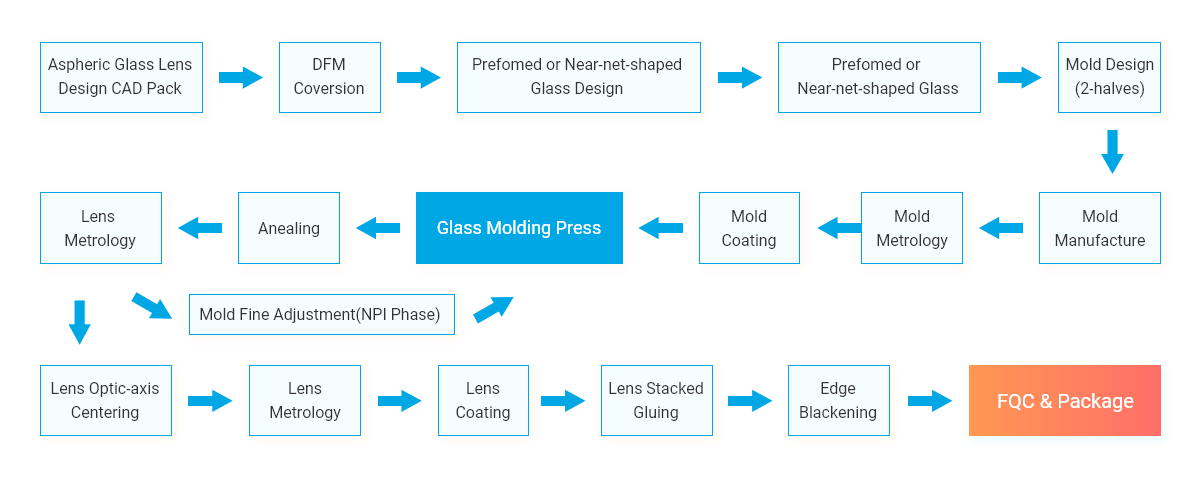

The Core competencies of Aspheric Lens Department are in-house Glass Molding Press (GMP) technology and Mold manufacturing with comprehensive machining from rough to precicision process of fine mold surfaces, mold bases and inner/outer rings. Integrated capabilities absolutely control over all the critical manufacturing processes to ensure end-to-end quality mastery.

Description

Machine Name Brand & Model No. Manufacturer Description Quantity

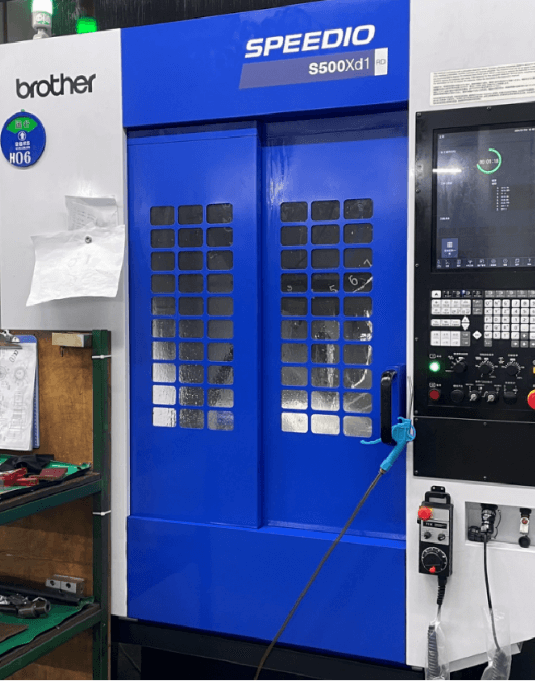

Brother S500Xd1 5-Axis CNC Milling Machine
Model No. S500Xd1 RD*

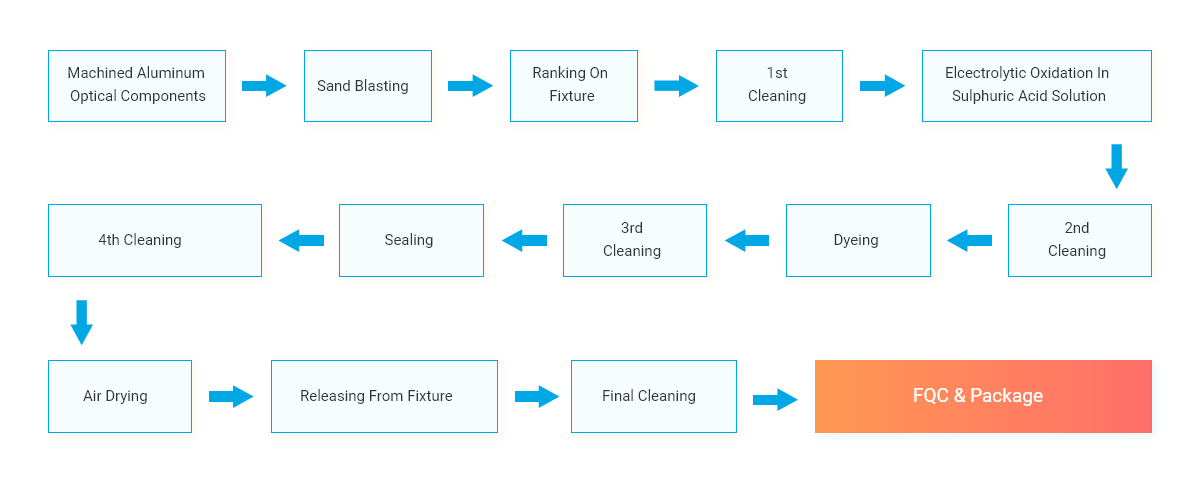

Anodized Oxide Layer Thickness
0.01~0.015mm
Anodized Oxide Layer Hardness
100~200HV
Anodized Oxide Layer Resistance Value
≈100Ω/cm²
Hole Diameter Devitation Value before/after Oxidation
≤0.01mm
Referable Standard Tolerances
Lens O.D.
φ1.3~3mm
φ3~φ30mm
φ20~φ40mm
φ40~φ80mm
φ80~φ200mm
N
±3 circles
±3 circles
±3 circles
±4 circles
±5 circles
ΔN
0.3
0.3
0.3
0.5
0.5
Thickness Accuracy
±0.02mm
±0.02mm
±0.03mm
±0.03mm
±0.05mm
Machine Name Model No. Manufacturer Quantity Accuracy Notes
Referable Standard Tolerances
Lens O.D.
φ2~3mm
φ3~φ8mm
φ8~φ15mm
φ15~φ25mm
φ25~φ35mm
φ35~φ40mm
N
0.1~0.5µm
0.5~0.8µm
0.5~1.0µm
1.0~1.5µm
1.5~2.0µm
2.0~3.0µm
Optic-axis Shift
4~5µm
4~5µm
4~5µm
5~7µm
5~7µm
5~8µm
Machine Name Model No. Manufacturer Quantity Accuracy Notes
Machine Name Model No. Manufacturer Quantity Accuracy Notes

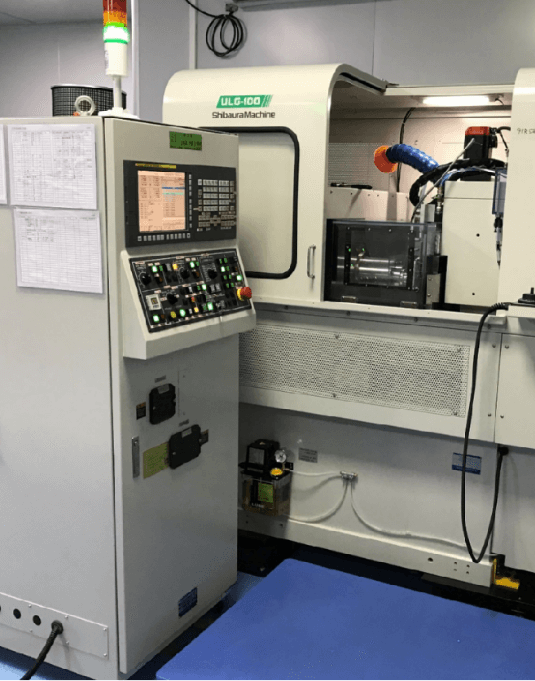

Shibaura ULG-100E Freeform Diamond Machine
Model No. ULG-100E(HYC)

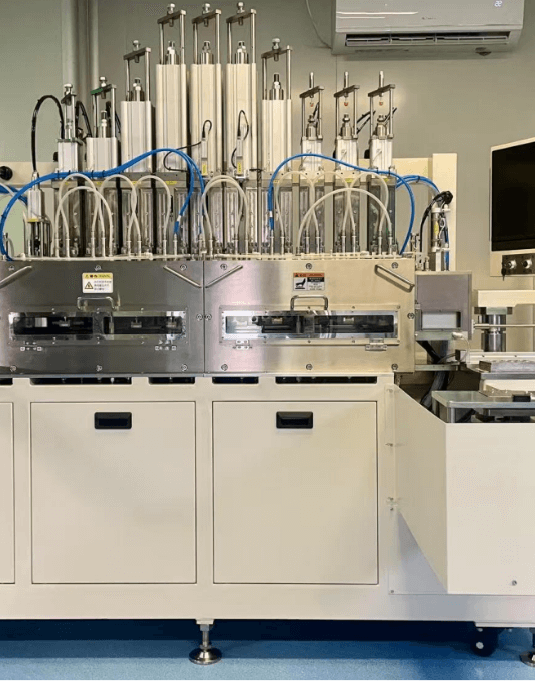

JinDing MD13-90 Glass Molding Press Machine
Model No. MD13-90
