Instrument Business Unit

Instrument Business Unit is specialized in optical measurement instruments and assembly equipments. Business scope covers instrument/equipment R&D, manufacture and sales. Focusing on the optical measurement and assembly of lenses, lens modules, semi-finished optic products, and finished cameras, it is committed to providing high-quality technical solutions and premium services. After years of technological refinement and market expansion, the business unit has developed proprietary standard product series, e.g. Camera MTF, lens Glue dispensing m/c ...

Model No.	IOEC-OPT-B1070-B

*Accept Customization as well

Key Features:

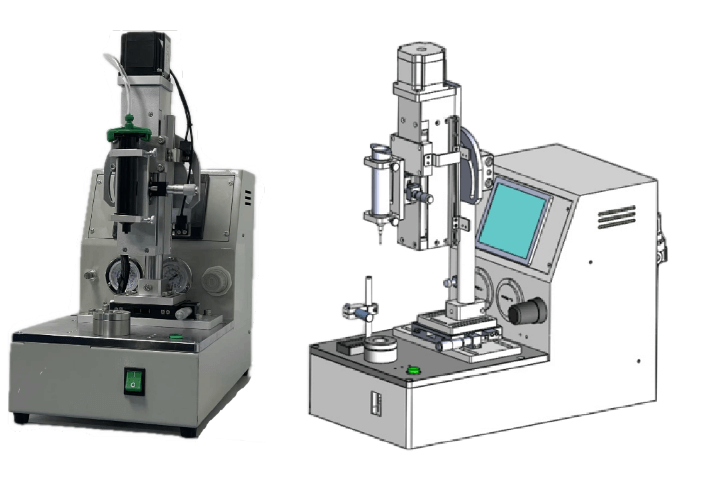

IOEC-OPT-B1070-B series glue dispensing machine is designed for the glue station in lens module assembly processes. It enables continuous or segmented dispensing along both inner and outer perimeters of lens barrier circular shapes, supports various industrial adhesives including UV-curable adhesives and black adhesives, and can be customized with integrated UV curing functionality.

Model No.	IOEC-OPT-B1070-B

*Accept Customization as well

Key Features:

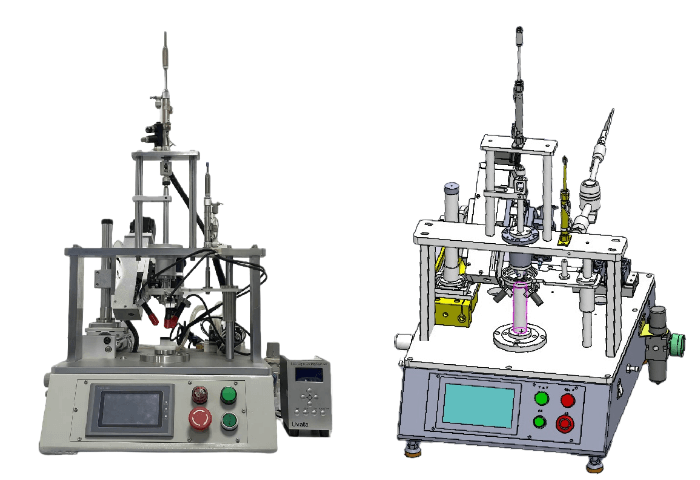

IOEC-OPT-B1014 series dispensing machines are integrated for multi work stations in lens assembly processes, except all the glue dispensing functions as usual. This machine also integrates lens press-in-barriers and UV curing functions.

Key Features:

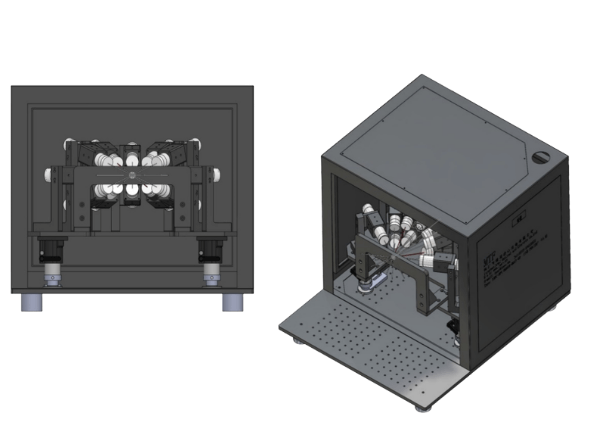

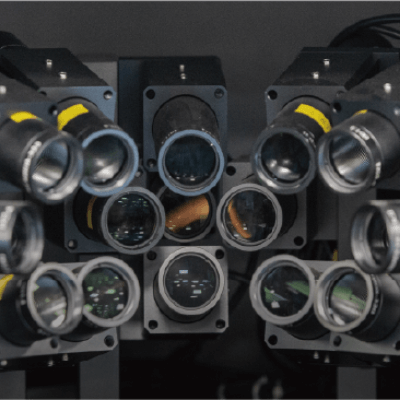

IOEC-OPT-B2019-0013 series is an optical parameter testing device designed for camera module inspection. Through camera MTF measurements, it objectively evaluates the imaging quality of products and assesses the detail reproduction capabilities at various frequencies. This facilitates quality control during product R&D and manufacturing processes, while also providing valuable references for users to select suitable products.

Model No.	IOEC-OPT-B2019-0013- 15X-FOV120°

*Accept Customization as well

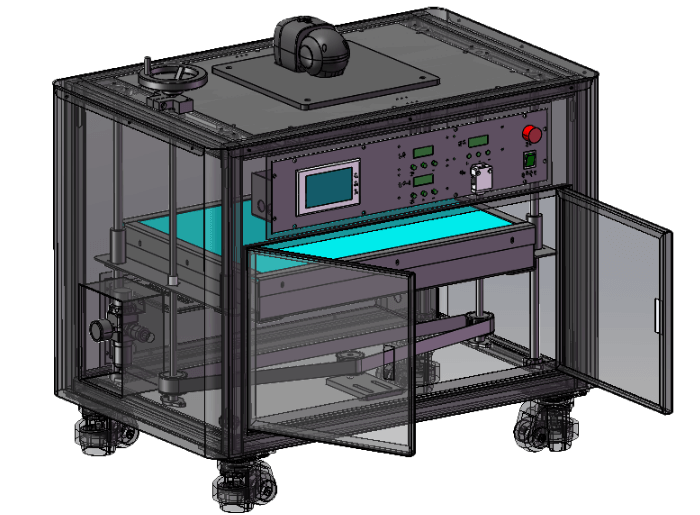

Model No.	IOEC-OPT-B1005 (E-drive lifting)

*Accept Customization as well

Key Features:

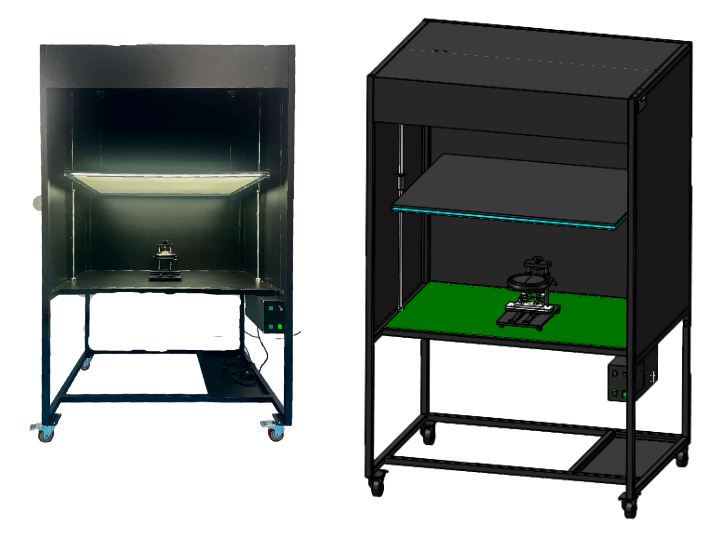

IOEC-OPT-B1005 provides a test environment setup platform essential for camera module focus adjustment. Featuring an integrated enclosure, relay lens, test chart, and software suite, it enables decisive clarity assessment through calibrated focus alignment—where the test chart plane is positioned to the specified height per the relay lens distance reference chart.

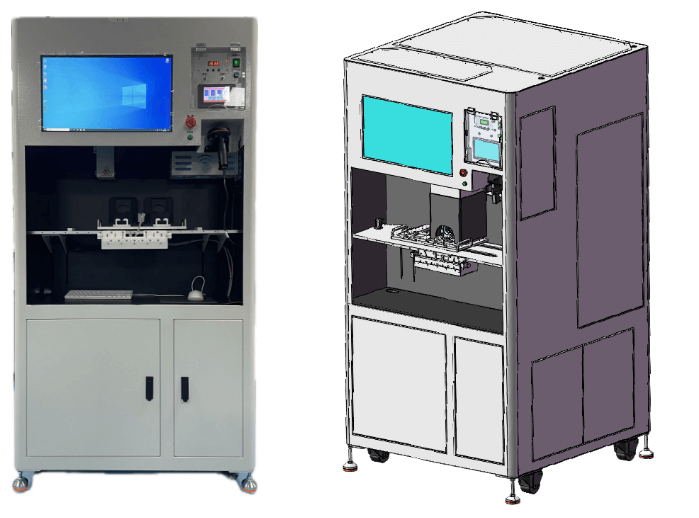

Model No.	IOEC-OPT-B1024 Security Camera FG Tester

*Accept Customization as well

Key Features:

IOEC-OPT-B1024 specilized as the FG tester for the security camera products. It addresses automated multifunctional test requirements, and supports day/night vision sharpness detection and function tests for contamination, speakers, microphones and other audio performance.

Model No.	IOEC-OPT-B1034 Security Camera Test Box

*Accept Customization as well

Key Features:

IOEC-OPT-B1034 constructed test environments for security camera module focus adjustment. Equipped with a cabinet, relay lens, light source, test chart, and serial port testing capabilities. This system enables focus adjustment and clarity inspection by positioning the test chart surface at corresponding heights according to the relay lens distance reference table. It also provides optional function like camera contamination inspection and night vision testing.

Key Features:

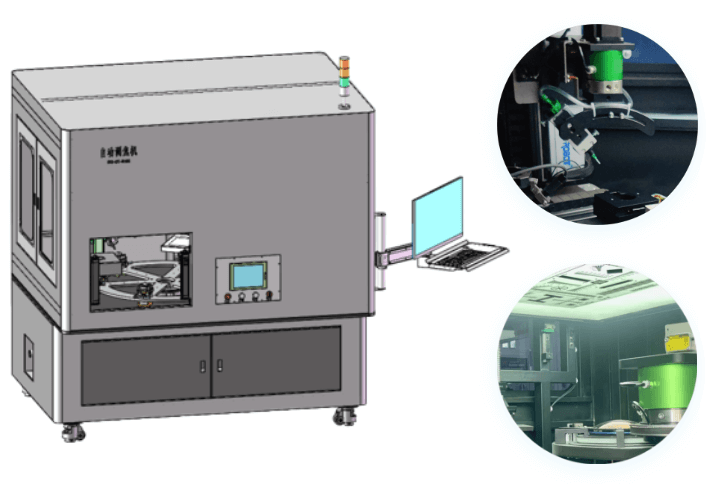

IOEC-OPT-B1092 The auto-focusing machine is exclusively engineered for camera module production lines, integrating critical processes including auto-focus coarse/fine adjustment, lens contamination inspection, full-perimeter lens glue dispensing, and UV irradiation curing. Its fully automated operation optimizes for both production efficiency and yield enhancement.

Model No.	IOEC-OPT-B1092

*Accept Customization as well

Standard and *Customized
